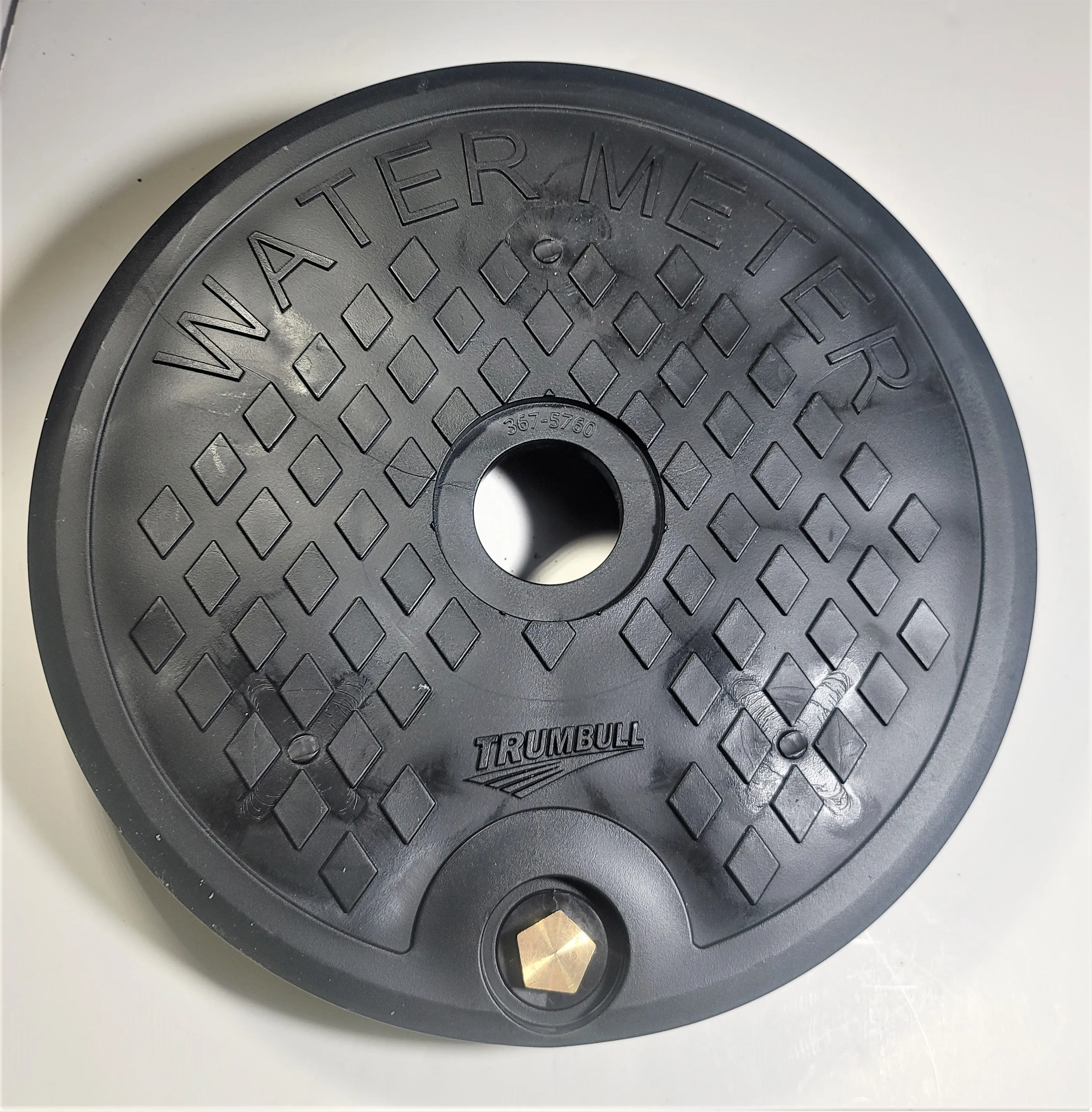

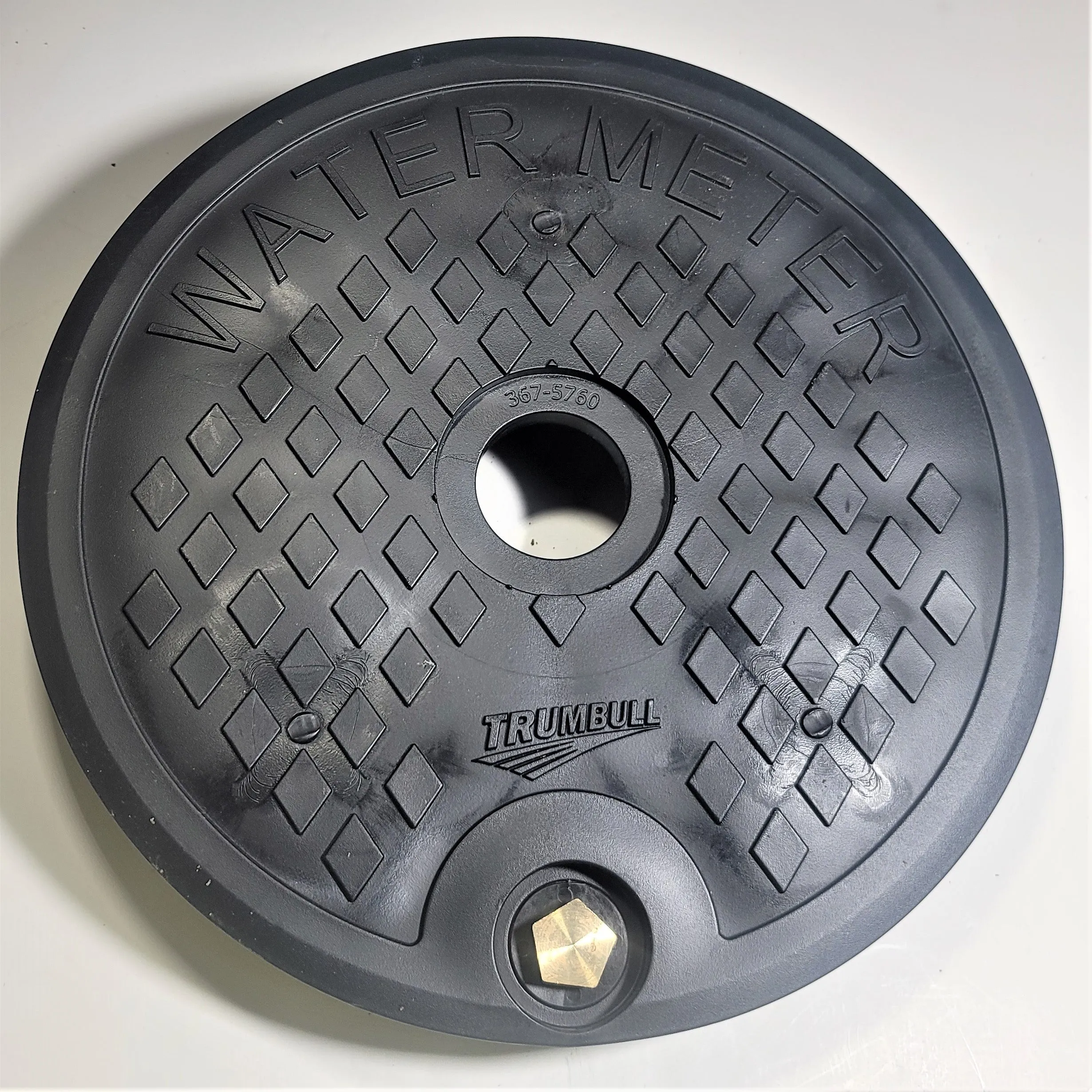

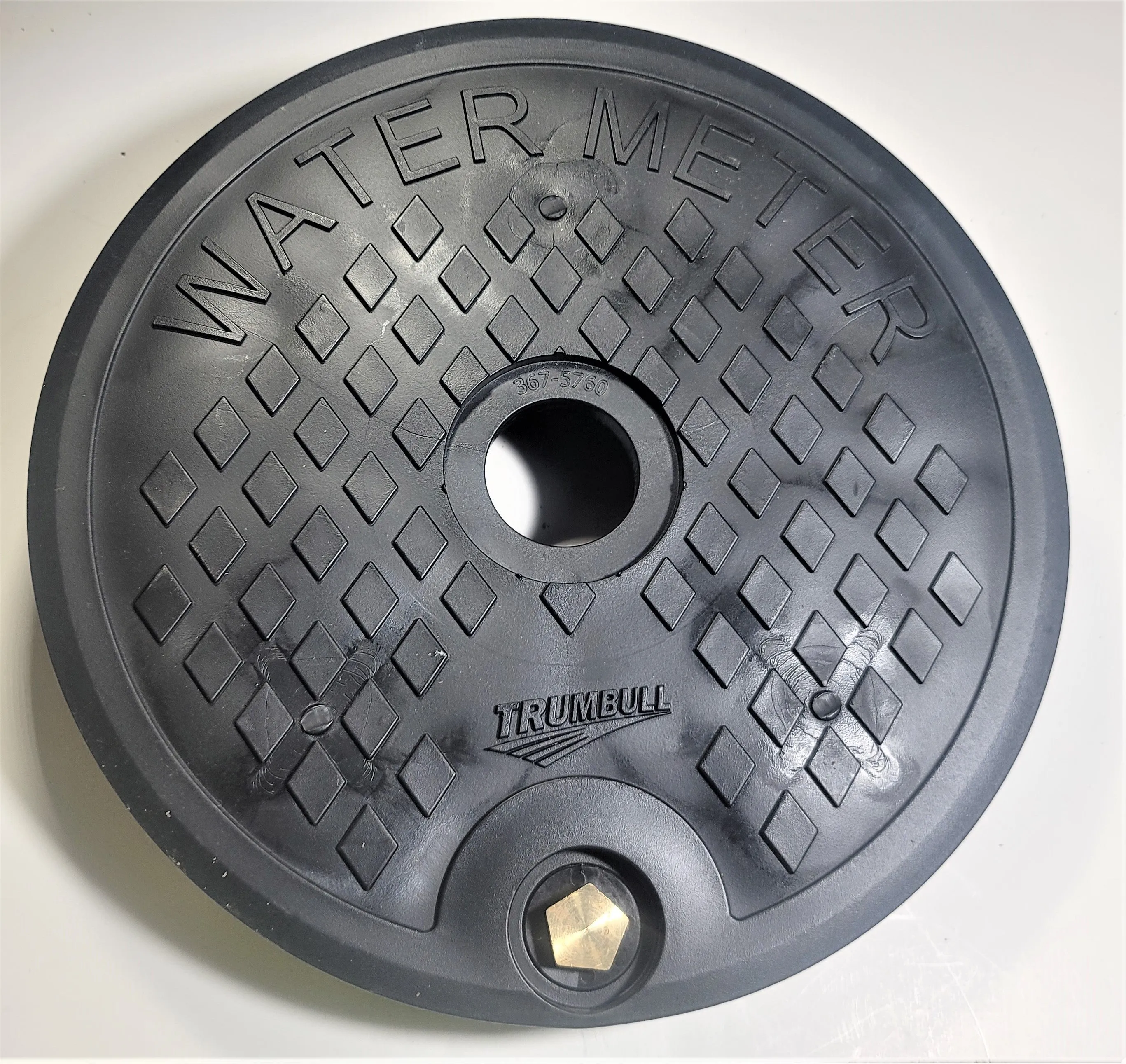

Trumbull lid with counter bore for Itron AMI or AMR Devices so that the antenna is flush with the lid top to avoid trip hazards or damage from mowers or snow plows. 20,000 Lb. weight rating, ADA compliant, with "Water Meter" text on the top of the lid.
Dimensions:
- 11-1/2” Clear Opening
- 12-1/4” Outside Diameter
- 0.65” Thickness Rim

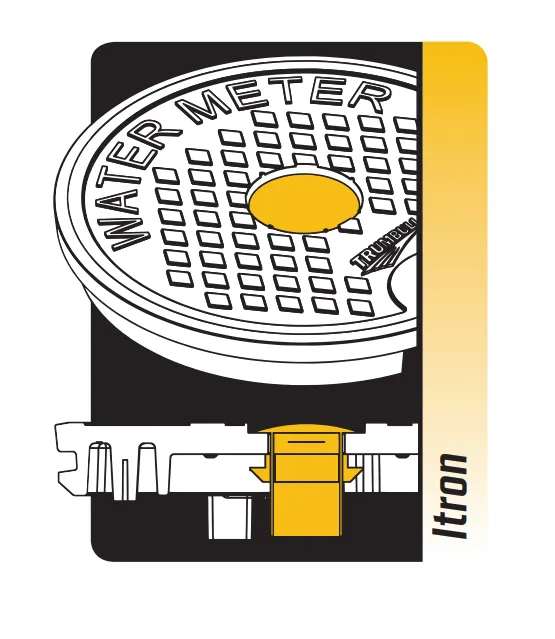

- Antenna Counter Bore: 2.84" Diameter x 0.26" Depth.
- Hole Diameter 1.88"
Fits These 11" opening Frames
- Ford Meter Box - Types A, C,
- A.Y. McDonald - Types A and C
This may fit other brands of A, and C frames. Please compare the actual dimensions.
Detailed Specs:
- ADA compliant slip resistant surface
- 20,000 lbs. lids furnished with nylon worm gear.
- (Also available with ductile worm gear (special order).

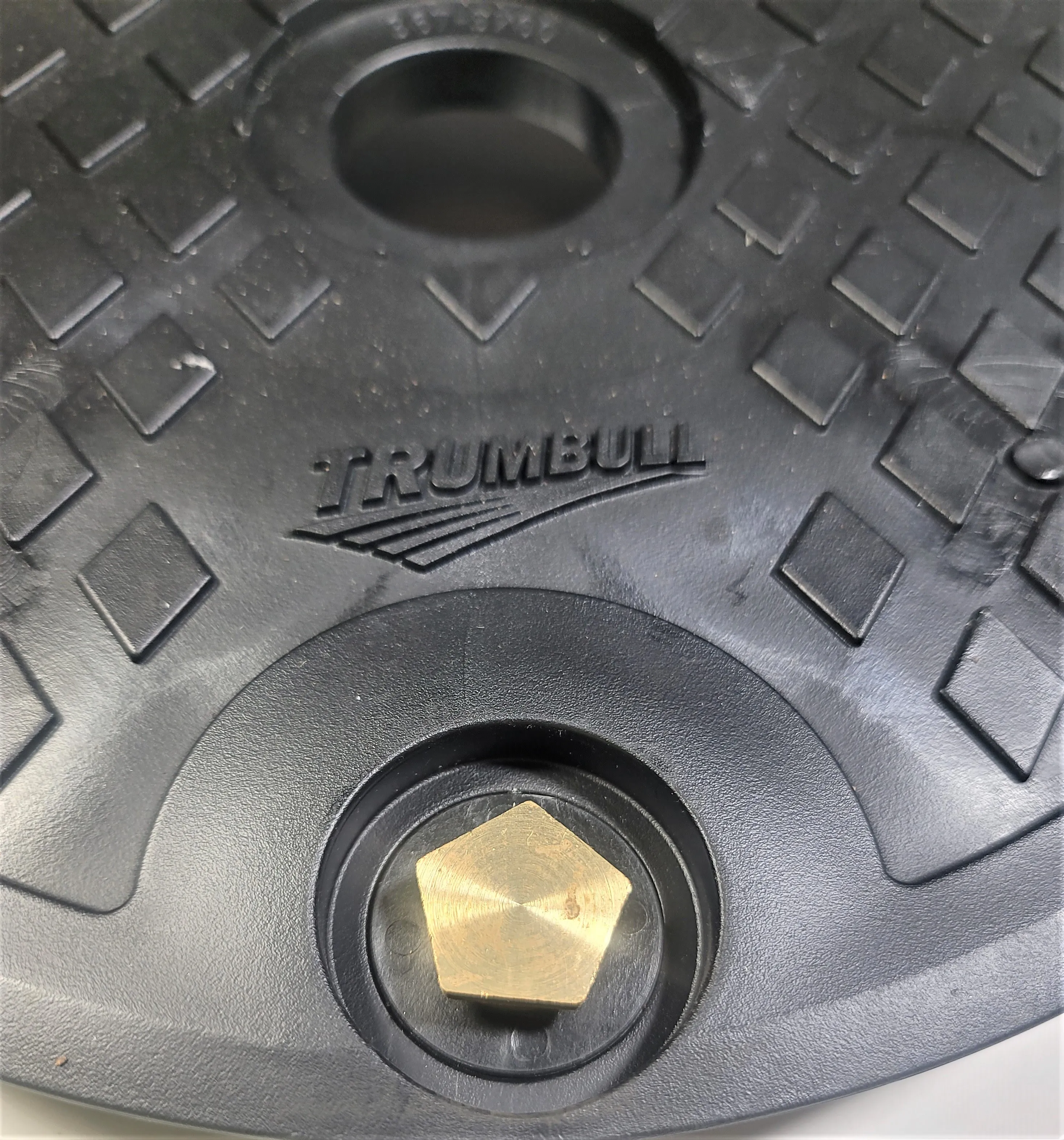

- Lids are furnished with standard (27/32”) pentagon bolt.
- Also available with large (1-1/32”) pentagon bolt (special order).
- Lids furnished marked “WATER METER”. (inquire about custom lettering)
- Bearing washers located above and below 20,000 lbs. lids are UHMWPE.

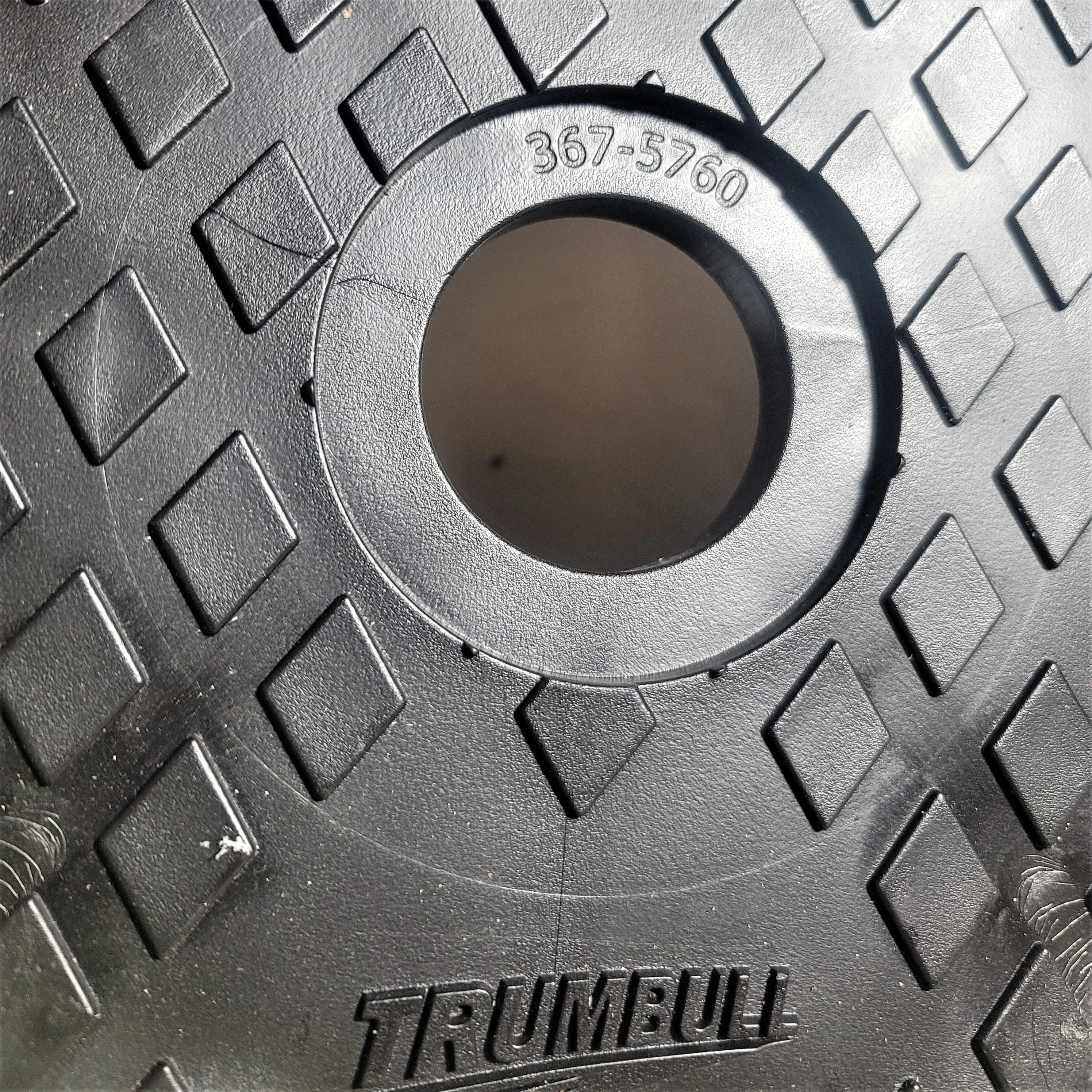

- Itron Counter bore cover part number 367-5812 / 367-5760
- Any antenna shown for illustration only and is not included.
